Using Templates

You can view system records (like Boot Sector, Master Boot Record (MBR), MFT or MFT records (Master File Table) etc.) by using a Templates (Patterns) tool window. Template window is a small dockable window normally located to the left from main Disk Viewer editing area. If it is not visible, you can turn it on by selecting toolbar menu View > Windows > Templates.

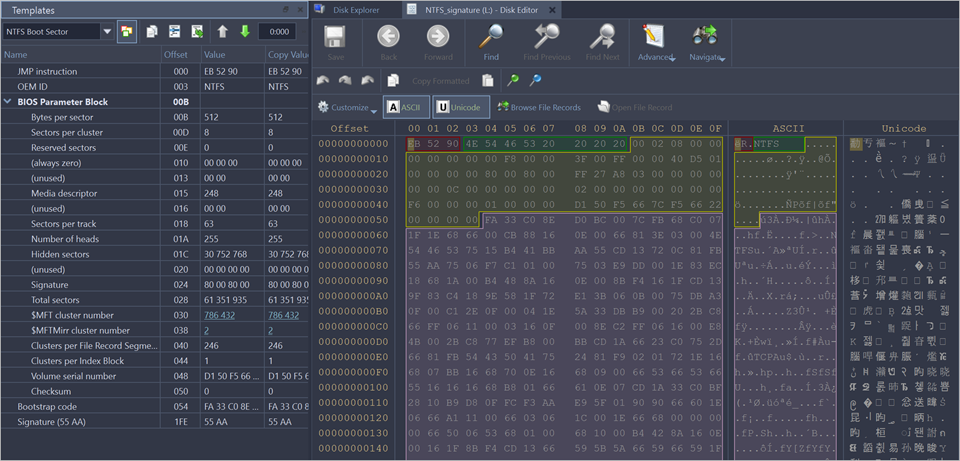

Figure 1: NTFS Boot Sector and its template

Applying a template

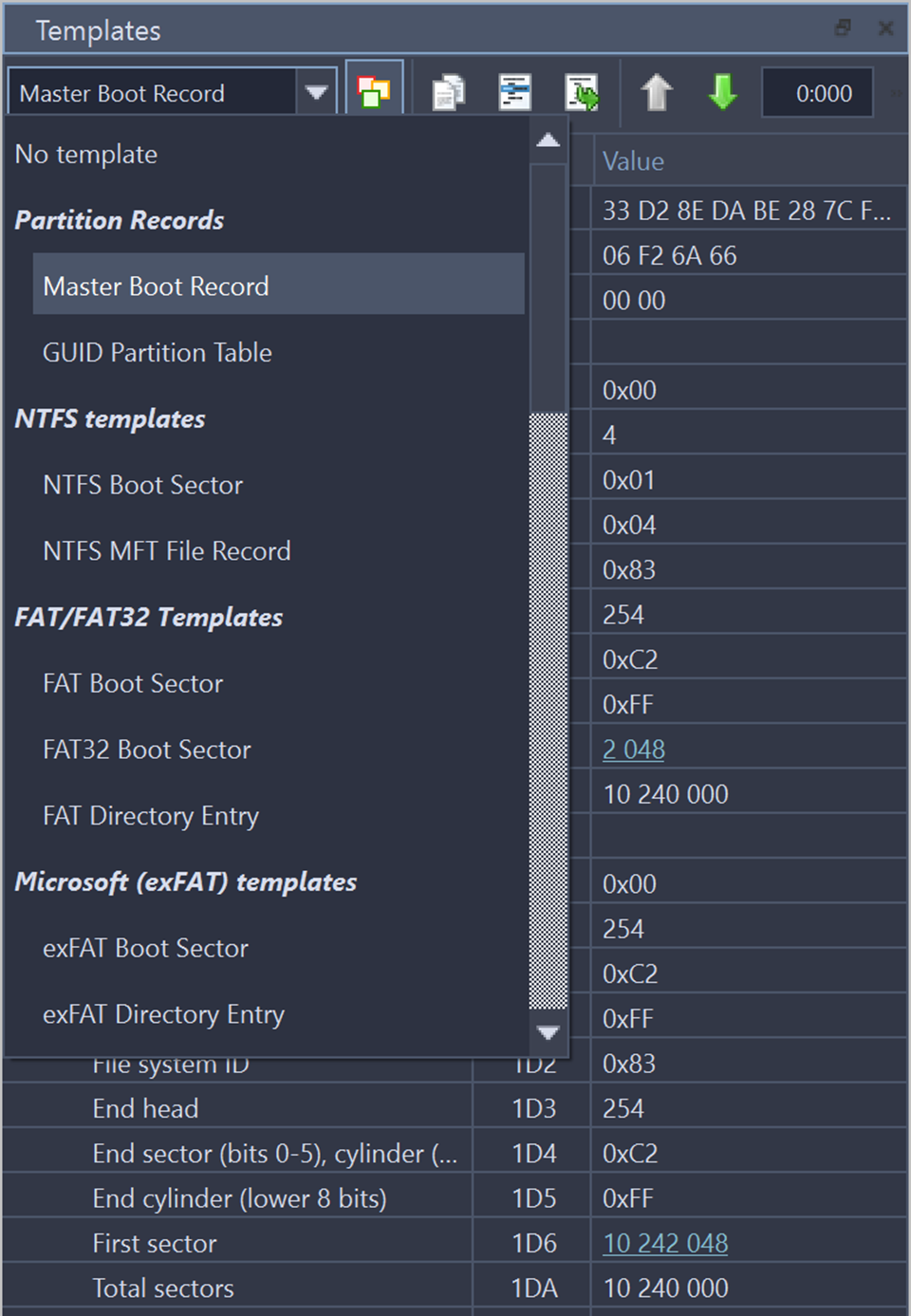

In order to apply a template to the desired offset, move the cursor to the location and use context menu command Set Template position. The next step select a required template from the list box with template names in the toolbar of templates window.

When you are jumping to particular system areas using Navigate menu, the corresponding template might be applied automatically. This is true for templates like boot sectors, MBR or MFT record but not all access points have a template associated with them.

The following templates are supported:

Partition records

NTFS templates

NTFS Boot Sector
NTFS MFT File record

FAT File System templates

FAT Boot Sector
FAT32 Boot Sector
FAT (File Allocation Table) Directory Entry

exFAT templates

exFAT Boot Sector
exFAT Directory Entry

Microsoft ReFS templates

ReFS Boot Sector
ReFS Entry

Apple Hierarchical File System (HFS+) templates

HFS+ Volume Header
HFS+ Catalog Node
HFS+ File Record

Apple (ApFS) templates

ApFS Volume Superblock
ApFS File System
ApFS Inode

Linux Extended File System (Ext) templates

Ext2/Ext3/Ext4 Superblock
Ext2/Ext3/Ext4 Inode

Linux B-tree (BtrFS) File System templates

BtrFS Superblock

Linux/Unix File System (JFS) templates

JFS Volume Superblock
JFS Inode

Linux/Unix File System (XFS) templates

XFS Volume Superblock
XFS AG Free Space Block
XFS AG Inode Block
XFS AG Inode

Unix File System (UFS) templates

UFS Superblock
UFS Inode

Logical Disk Manager (LDM) templates

LDM Private Header
LDM TOC Block
LDM VMDB Block
LDM Klog Block
LDM VBLK Block

Template Copy

The following templates have their copy:

NTFS Boot Sector
FAT32 Boot Sector
HFS+ Volume Header
Ext2/Ext3/Ext4 Superblock
LDM Private Header
LDM TOC Block

In this case template window will have an additional column named Copy Value which contains the data from the copy record. Template copies are useful to compare record located in different locations using the same pattern, for example to compare a boot record with its copy.

In case of Copy template its location is set separately from a main record using the same pattern. If the main template and its copy are intersecting, the copy template data will be shown in template window but not highlighted in the main edit area.

Setting template position

In order to set a template position or change an existing one move the cursor to desired location and use context menu command Set Template position (or Set Template Copy Position for its copy).

Navigating to a system area which has an attached template using Navigate menu also changes template position.

In order to facilitate the movement between records located in sequence, use arrow buttons located in the template window toolbar next to the templates list. For example, if you are editing or viewing an MFT record you can easily move to the next or previous record using those buttons.

Another way to set a template position is to enter new offset directly into template offset edit field in the template window toolbar. One of those fields are used for entering an offset of the main record and another is for its copy. The format of offset used in offset field is <sector:>:<sector offset>. You don't need to specify sector offset if you want to move to the beginning of the sector. For example, you can simply enter 100 to go to sector 100 and template offset will be shown as 100:0, but if you need to specify 128 byte in sector 100, you have to enter 100:128.

Highlighting template fields

By default all individual fields of template record are highlighted in Disk Viewer main area (in hexadecimal and ASCII columns only). This coloring highlighting can be disabled by clicking Toggle template fields coloring button in template window toolbar next to arrow buttons.

The colors used by template coloring are arbitrary and have no specific meaning, their main purpose is to make separate fields visible and distinguish from each other. Actually, a palette of several colors is chosen and colors are used in a circle. When you select a field in the template window, the current field is also highlighted in hex editing area with bold field frame.

When you move a mouse cursor above colored field in editing area, the name and value of the corresponding field is also shown in a tooltip.

Navigating around template fields

You can set the cursor (current position) to a particular field in a template by double clicking it. If you double click in Name, Offset or Value column, the position inside the main record is selected, but if you click inside Copy Value column, the navigation is performed to the field in template copy.

Attention:

Please note, that in Edit mode double clicking inside of Value or Copy Value starts editing of the field instead of navigating to that field.

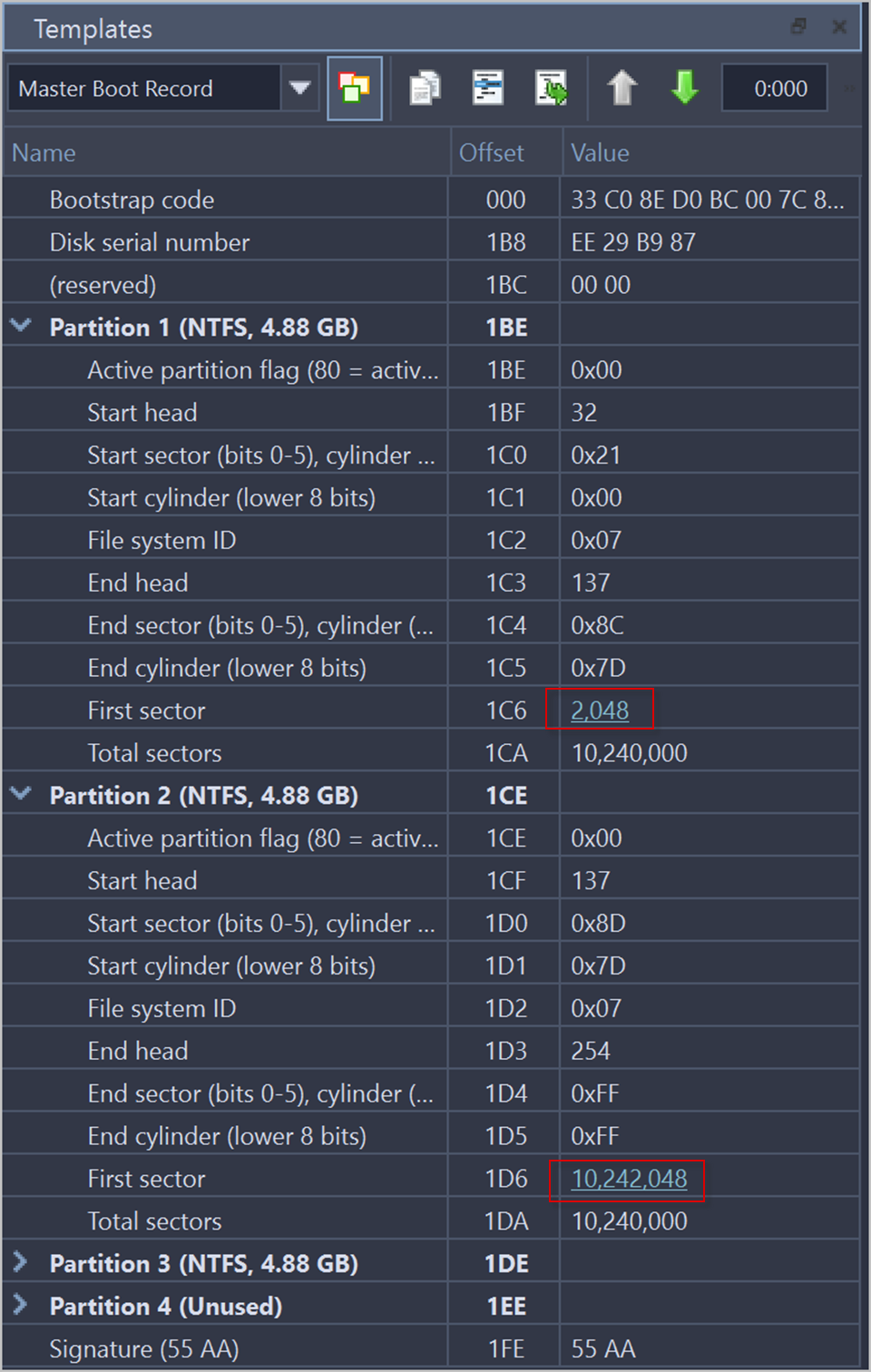

Hyperlinks in templates

Many templates contain hyperlinks allowing navigate easily to important data points.

For example, MFT records contain links to first cluster in data runs and MBR provides links to partitions.
